Inspection Camera Pipe and Drain Camera Systems

00M-2530H Full HD System Ø25mm Camera 30m Ø6.3mm Cable

$6,920.00 excl GST
or 6 weekly interest-free payments from $200.00 or 6 weekly interest-free payments with an initial payment of $5,920.00 and weekly payments of $200.00 Laybuy What's this?

Receive your purchase now, spread the total cost over 6 weekly automatic payments. Interest free!

  • Simply select Laybuy as your payment method at checkout
  • Login or Register for Laybuy and complete your order in seconds
  • Complete your purchase using an existing debit or credit card
  • Pay over 6 weeks and receive your purchase now

Ø25mm Camera Head 30M 6.3mm Cable 1080P Full HD Integrated Inspection Camera

the selected product is not available.

Pipe and Drain Camera Systems

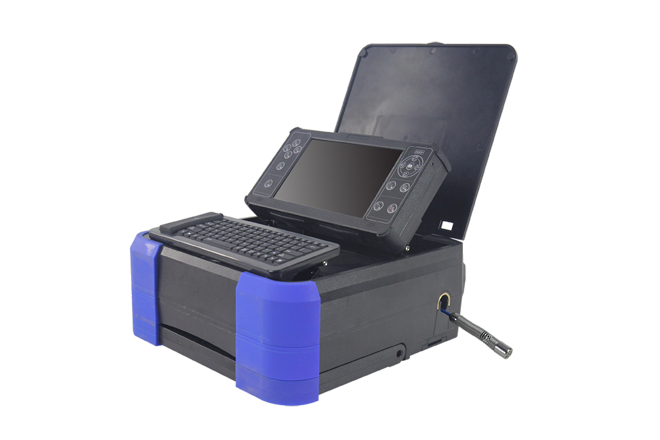

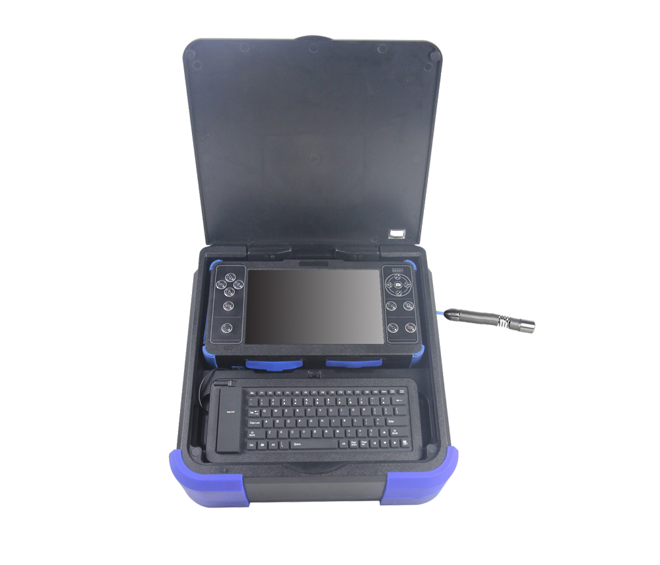

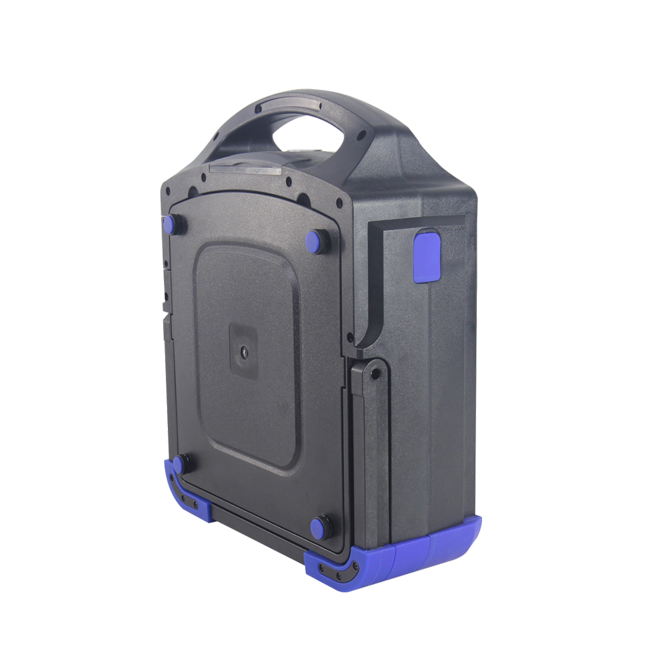

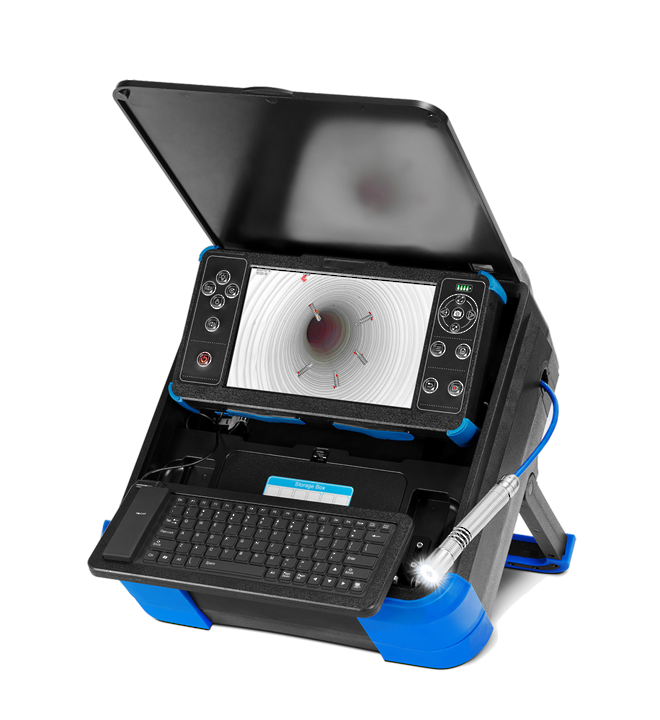

A full HD drain and sewer pipe inspection camera system fully integrated within a lightweight, easy to carry case.
This uniquely designed compact camera system boasts full HD crystal clear videos and images, 8 digital zoom levels, detachable robust camera head with Sony CMOS sensor and built-in, removable cable reel.
  • Full 1080P HD resolution in an integrated system
  • Ø25mm full HD self-levelling camera head
  • 10.1 inch colour TFT display
  • Rechargeable and mains power option
  • Integrated QWERTY keyboard for text input
  • Recording of full HD video and still images
  • Built in on screen distance counter
  • 30m push rod cable
  • 8 Levels of digital zoom
  • Tactile touch keypad for push button feature control
  • Thicker Ø6.3 mm push rod cable for improved control and distance
  • IP68 rated camera head (waterproof and dust tight)
  • 512 Hz integrated transmitting sonde in camera head for easy location of position and depth
  • Completely integrated in one field case for ease of transport and fast deployment
Camera Head
  • Camera size: Ø23mm*135mm
  • Camera pixels: 1920*1080
  • Sensor size: 1/2.9"
  • View angle: 105°
  • LEDs: 12
  • Waterproof: IP68
  • Skids: 40/80mm
  • Lens material: sapphire glass
  • Suitable pipe size: 30-200mm
  • Built-in 512Hz sonde transmitter
LCD Screen
  • 10.1" TFT LCD screen: 345*175*54mm
  • Multi angle
  • Pixels: 1280*800
  • Storage: 64G SD Card (max 256G), USB, Type-C OTG card reader
  • 8 digital zoom levels
  • Video format: AVI
  • Photo format: JPEG
  • HDMI output (HD interface)
  • Support extra external USB camera, AHD input and CVBS output
  • Battery: 6000mAh 12V
  • M/FT switch and Count reset.
Cable Reel
  • Cable size: Ø6.3mm, 4-core coaxial
  • Cable length: 30m
  • Reel size: Ø332*59mm
  • Meter counter
  • Integrated and removable
